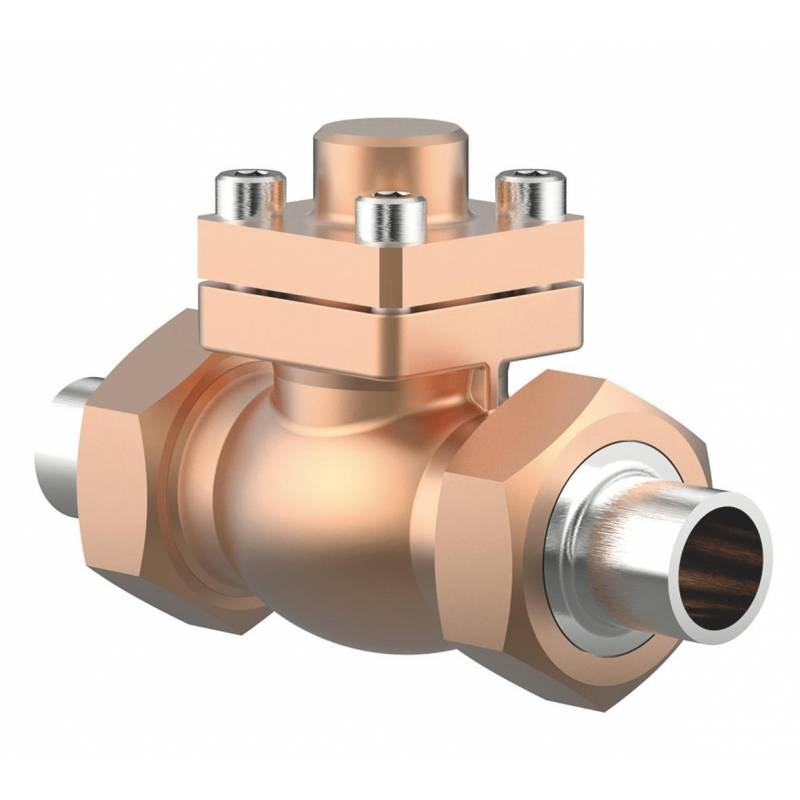

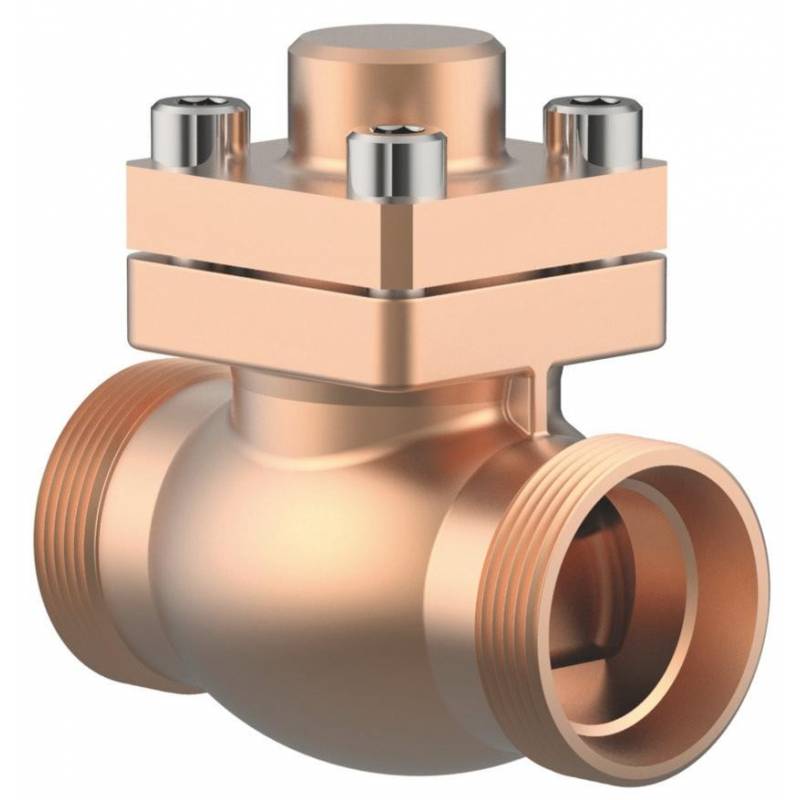

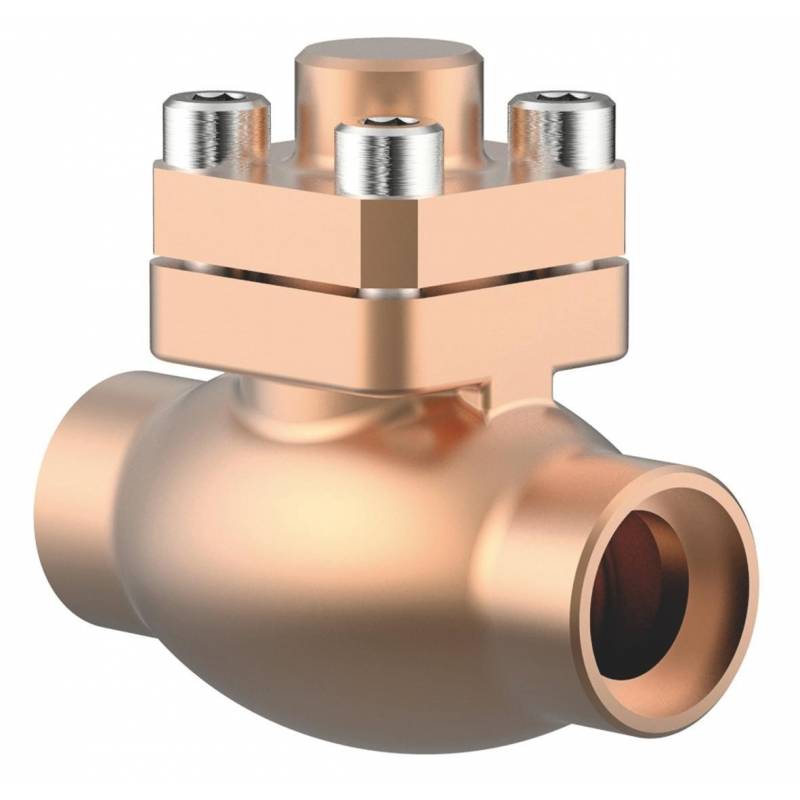

Bronze cryogenic check valves are protective valves aimed at prevention of medium flow direction change in a process system. Approved for application with gases, steams, and liquefied gases, including liquefied natural gas.
Bronze body and cap, with spring (opening pressure ca. 0,1 bar). Cleaned and degreased for oxygen service.
Available options - on request only:
Standard marking according to Pressure Equipment Directive 97/23/ЕС (PED).
|Оperating temperature range||from -196 ºС to +120 ºС|
|Сonnection dimensions||from DN 10 to DN 50|
|Сonnection||threaded, socket weld, with connectors for soldering|
|Operating pressure||to 50 bar|
|Installed length||from 60 to 460 mm|
|Height||from 71 to 95 mm|
