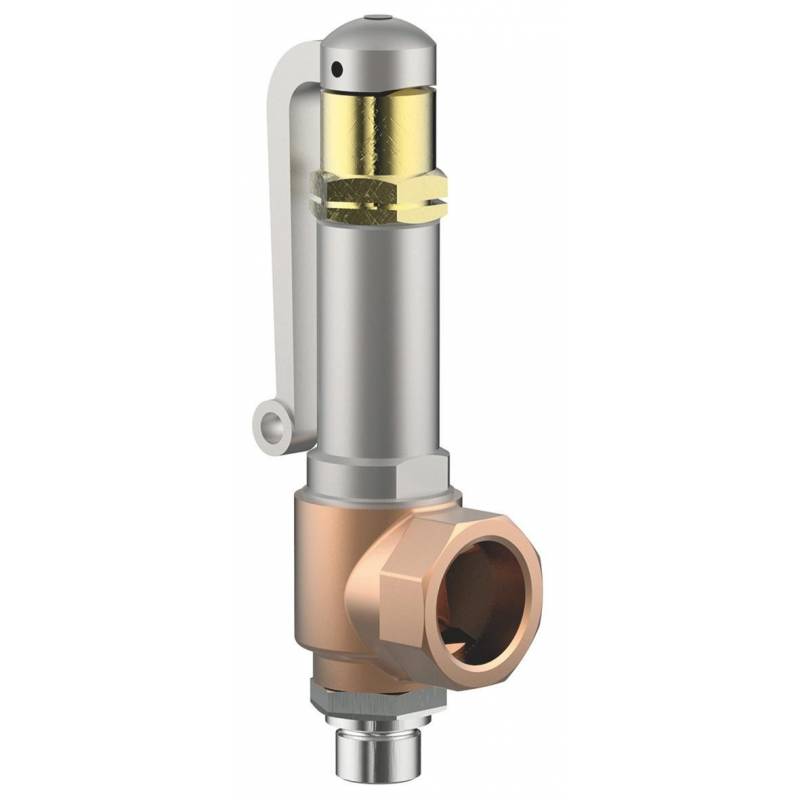

Safety valves with lifting device

Cryogenic safety valves with lifting device are designed to protect against overpressure in pipelines operating under pressure, as well as in stationary and mobile tanks.

Approved for application with gases, steams, and liquefied gases, including liquefied natural gas.

More details

Data sheet

Detailed description
Specifications

Available options - on request only:

with open bonnet;
with installed elbow – on request only;
external parts nickel plated - on request only.

HEROSE products are certified in accordance with the requirements of the state certification system UkrSEPRO (Unified State System of Certification and Standardization of Ukraine).

Оperating temperature range	from - 270 ºС to + 225 ºС
Сonnection dimensions	from 1/2" to 1-1/4"
Materials	bronze, stainless steel
Сonnection	threaded
Operating pressure	from 0.2 to 50 bar
