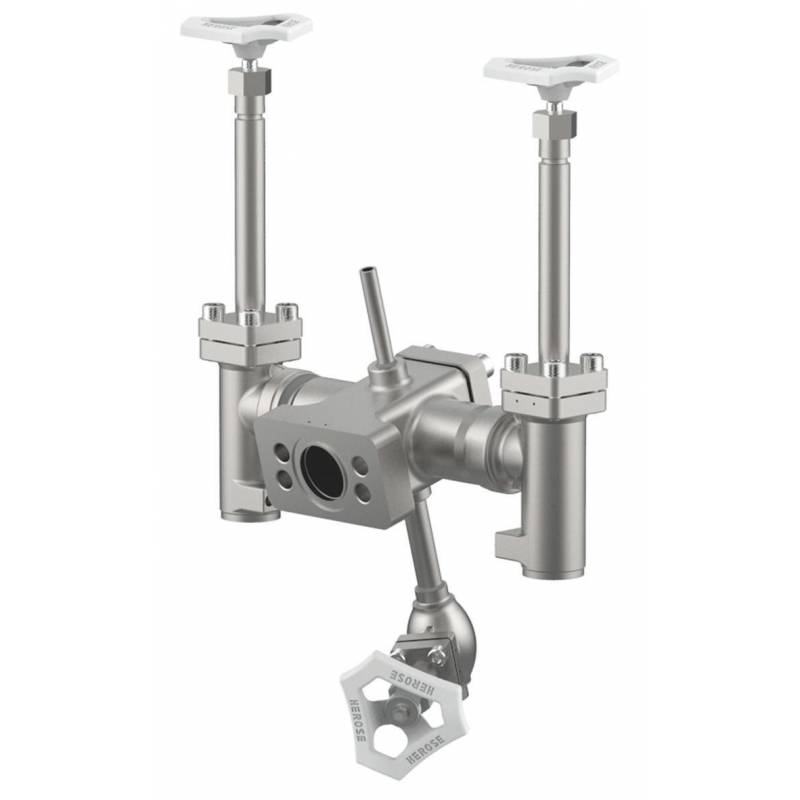

Stainless steel fill clusters constitute a device for ensuring the simultaneous filling of two tanks with a cryogenic liquid. Most often, the design of a filling cluster provides two globe valves, a hummer union for connecting a fluid source, a drain valve, to ensure safe operation and a check valve.
Designed for air separation products, vapors and cryogenic liquefied gases, including liquefied natural gas.
The body and flange part with flanged connection made of stainless steel, a "long life" stem seal, "degreased" for oxygen service.
Types of execution – on order only:
|Оperating temperature range||from - 196 ºС to + 120 ºС|
|Сonnection dimensions||DN 25, DN 40|
|Operating pressure||up to 50 bar|
|Installed length||225 mm|
