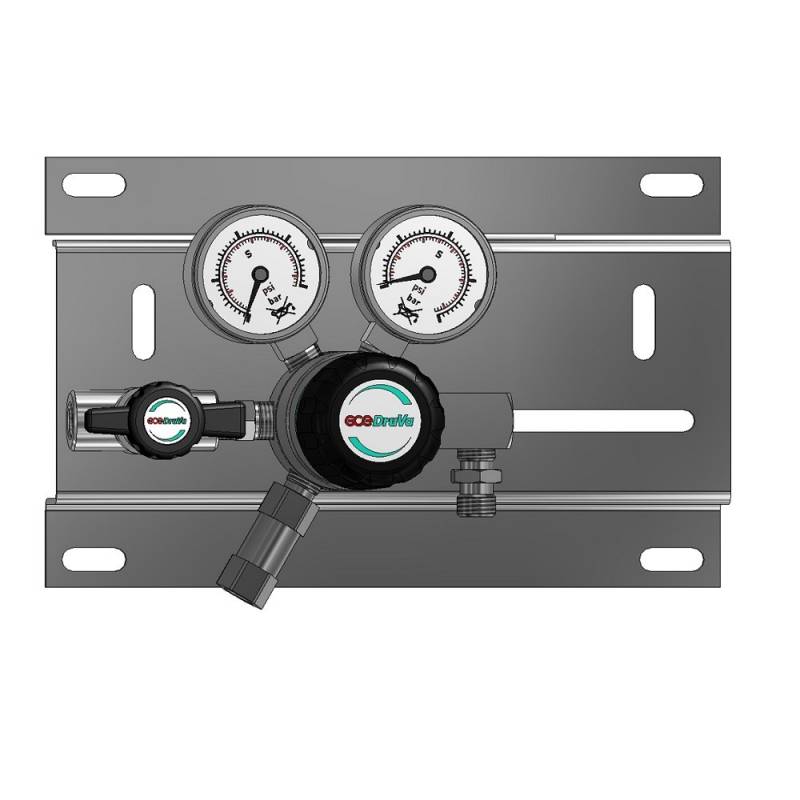

Gas supply control panel SMD 500-16/-24/-25

Compact single-stage gas supply panel for inert, reactive, flammable and oxidizing gases and mixtures with the purity grade up to 6.0. For the connection of one gas source or cylinder with a maximum gas pressure of 230 bar.

More details

0 грн

- +

Advantages:

  • for wall mounting or gas cylinder cabinet mounting;
  • for inert, reactive, flammable and oxidizing gases and gas mixtures;
  • excellent and accurate pressure control;
  • designed to minimize contamination;
  • low internal volume (nodead space);
  • metalisolatingdiaphragmvalves with 90 ° shut-off function;
  • ergonomical and functional design;
  • designed for easy installation;
  • long service life and easy maintenance;
  • suitable for ECD applications;
  • modular design: extendable - 1x2, 1x3, 1x4 cylinders;
  • tested at the Federal Institute for Materials Research and Testing (BAM). Suitable for oxygen use.
16 - basic shut-off isolation valve at the process gas outlet
24 - process gas purging shut-off isolation valve at the process gas inlet; additional inlet valve for process gas purging
25 - process gas purging with a shut-off valve at the outlet the same as type 24 + additional shut-off valve at the process gas outlet
