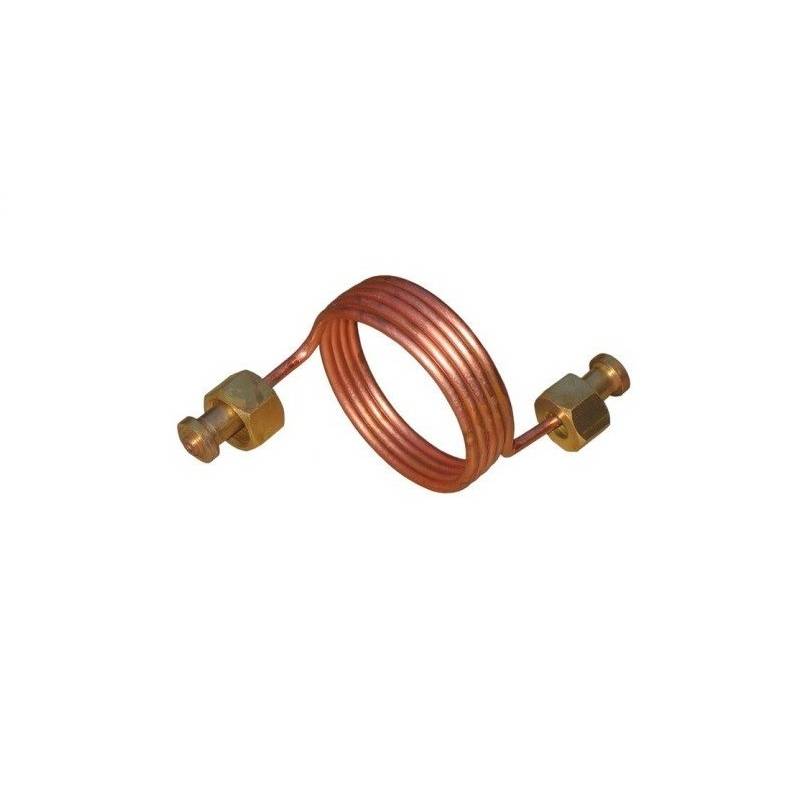

Cylinder manifold coils
Cylinder manifold coil is designed to connect a cylinder with industrial gas (oxygen, argon, nitrogen, helium, carbon dioxide, hydrogen, etc) or a manifold to a distributing header in order to avoid mechanical stresses.
Manifold coils are designed to connect cylinders with cylinder valve outlet thread G 3/4 to the inlet of the ramp manifold (bypass, discharge, filling).
| Gases | oxygen, nitrous oxide, nitrogen, air, argon, carbon dioxide |
| Materials | copper or stainless steel |
| Length | 1000 mm and more |
| Weight | up to 0.5 kg |
| Rated pressure | 200 bar |
| Union nuts | connection threads: female G 3/4; material - brass |
| Outside diameter | 8 mm |
| Wall thickness | 1.5 mm |
| Operation in the ambient temperature range | from - 40 ºС to + 50 ºС |
