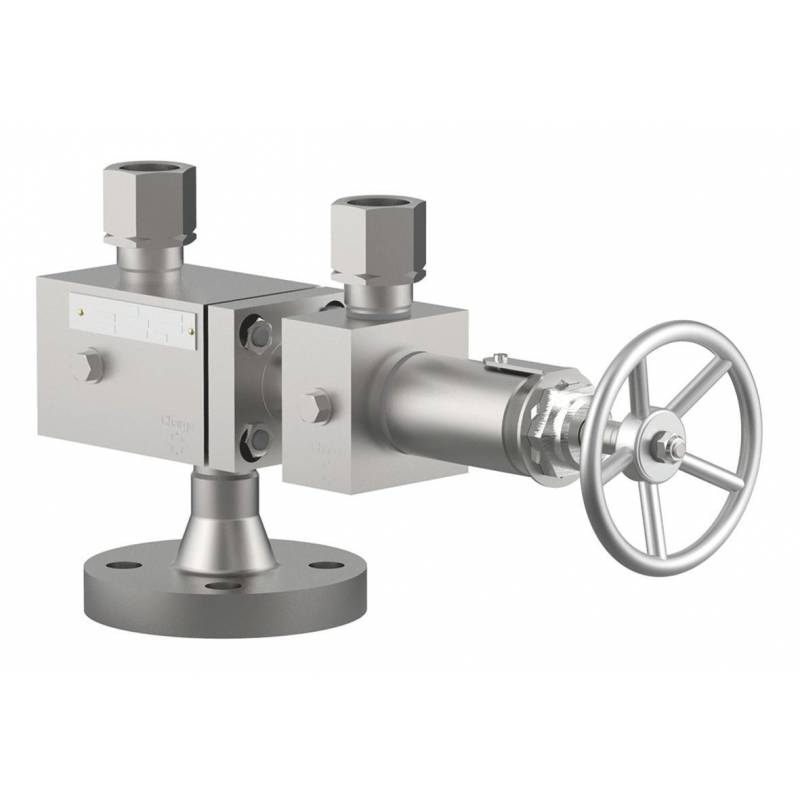

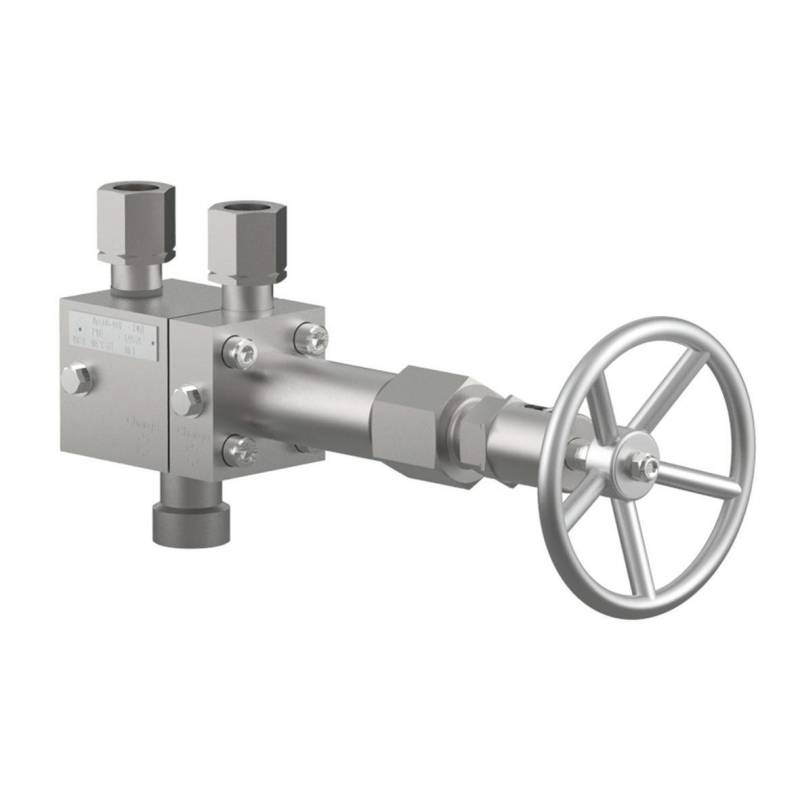

Stainless steel changeover valves
Cryogenic stainless steel changeover valves are installed in cases where there may occur a necessity to switch off one safety valve and at the same time to connect another one without process interruption in order to change medium flow direction or mix the mediums.
Designed for air separation products, vapors and cryogenic liquefied gases including liquefied natural gas.
Available options – on request only:
- changeover valves with pneumatic or electric actuator;
- outlet with flanges;
- with other threads to connect a vessel or a safety valve.
| Оperating temperature range | from - 196 ºС to + 185 ºС |
| Сonnection dimensions | DN 15, DN 25 |
| Materials | stainless steel |
| Сonnection | thread, flange |
| Operating pressure | to 160 bar |
| Installed length | 325 mm, 390 mm, 415 mm |
| Height | from 130 to 200 mm |
