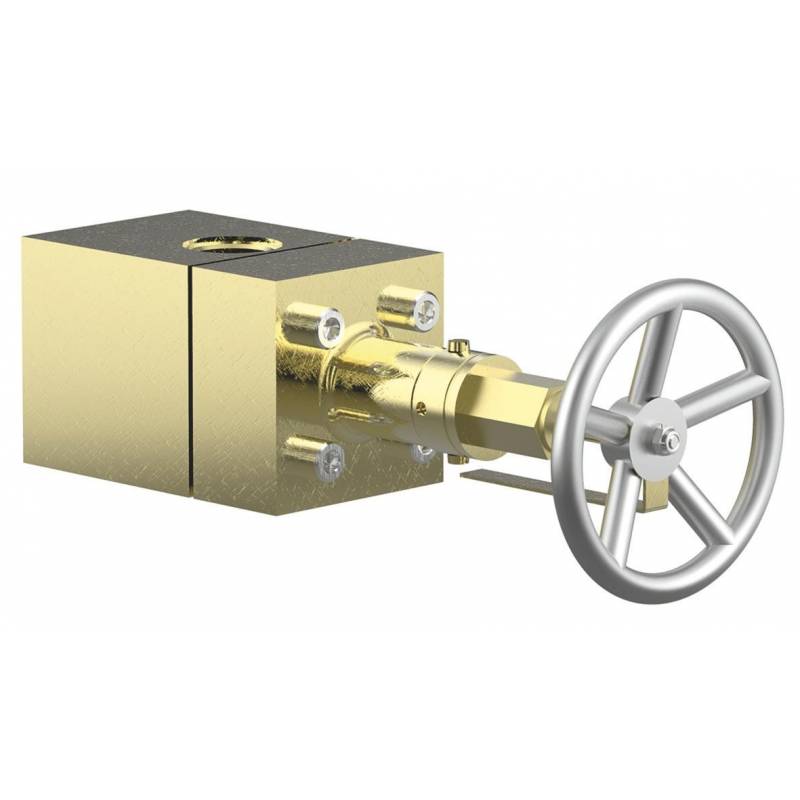

Brass changeover valves

Cryogenic changeover valves are installed in those cases when it may be necessary to disconnect one safety valve and simultaneously connect the other, without stopping the working process to change the direction of the medium flow or to mix media.

Designed for air separation products, vapors and cryogenic liquefied gases including liquefied natural gas.

Читать далее

More details

0 грн

- +

Types of execution – on order only:



  • valve for connection of bursting discs;
  • tightening nuts at the outlet to facilitate the proper spatial arrangement of safety valves;
  • 3/4 "thread outlet.
Оperating temperature range from - 196 ºС to + 185 ºС
Сonnection dimensions DN 15, DN 25
Materials brass
Сonnection thread
Operating pressure to 45 bar
Installed length 240 mm, 310 mm
Height 65 mm, 90 mm
