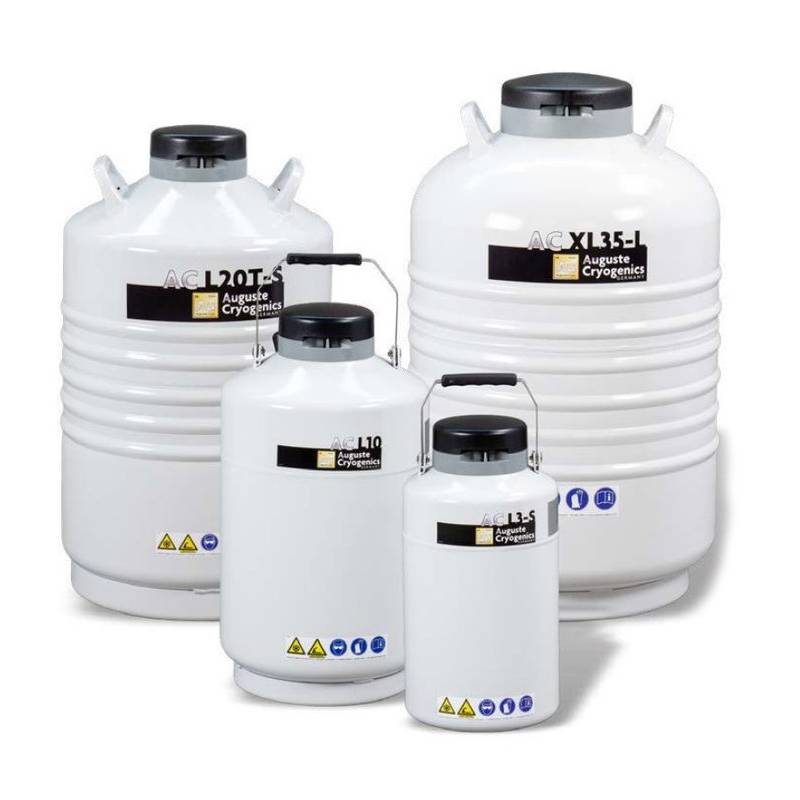

L, XL, XL +, 2XL series for the cryogenic storage of samples in canisters
The aluminum vessels of the L, XL, XL+, 2XL-series are cryogenic freezer containers for long-term storage of biogenic sample material in liquid nitrogen with many possible applications in laboratories and technology.
The vacuum-insulated, double-walled aluminum containers are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Features:
- high portability thanks to their low weight and compact dimensions;
- long holding times, resulting in high economic efficiency;
- large capacity of straws;
- design and quality.
Since the containers are open to the atmosphere, they are NOT pressure tanks according to the Pressure Equipment Directive 97/23 EG.
The transport of the filled containers on public roads and railways is only permitted according to the requirements of the current GGVSEB/ADR/RID.
The containers are not intended for applications with patient contact and may only be operated and serviced by trained personnel.
| Volume | from 2 to 50 l |
| Height | from 407 to 830 mm |
| Outside diameter | from 223 to 462 mm |
| Weight of an empty container | from 2.8 to 17.3 kg |
| Neck opening | from 30 to 125 mm |
| Static evaporation | from 0.07 to 0.45 l/day |
| Static hold time | from 24 to 159 days |
