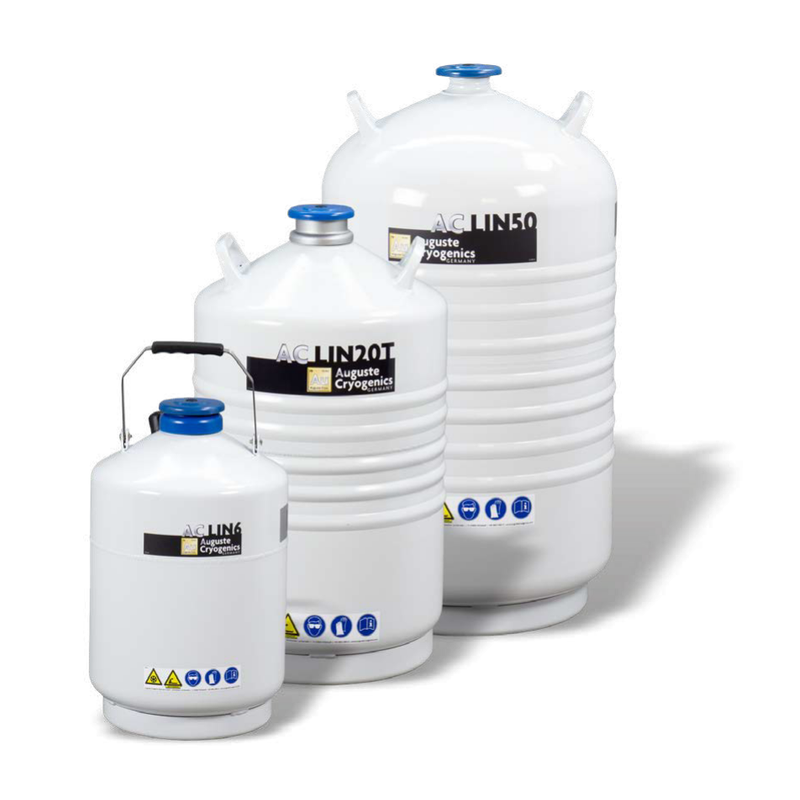

LIN series for the storage and distribution of liquid nitrogen
The vessels of the LIN series are special containers for the transport and distribution of liquid nitrogen. The containers with volumes between 3 and 50 liters are transportable and easy to handle - for the convenient distribution of small amounts of cryogenic liquid nitrogen.
The vacuum-insulated, double-walled aluminum containers are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Features:
- high portability thanks to their low weight and compact dimensions;
- long holding times, resulting in high economic efficiency;
- large capacity of straws;
- design and quality.
Since the containers are open to the atmosphere, they are NOT pressure tanks according to the Pressure Equipment Directive 97/23 EG.
The transport of the filled containers on public roads and railways is only permitted according to the requirements of the current GGVSEB/ADR/RID.
The containers are not intended for applications with patient contact and may only be operated and serviced by trained personnel.
| Volume | from 3 to 50 l |
| Height | from 435 to 1025 mm |
| Outside diameter | from 223 to 508 mm |
| Weight of an empty container | from 3.1 to 17.2 kg |
| Neck opening | 50 mm |
| Static evaporation | from 0.12 to 0.22 l/day |
| Static hold time | from 26 to 286 days |
