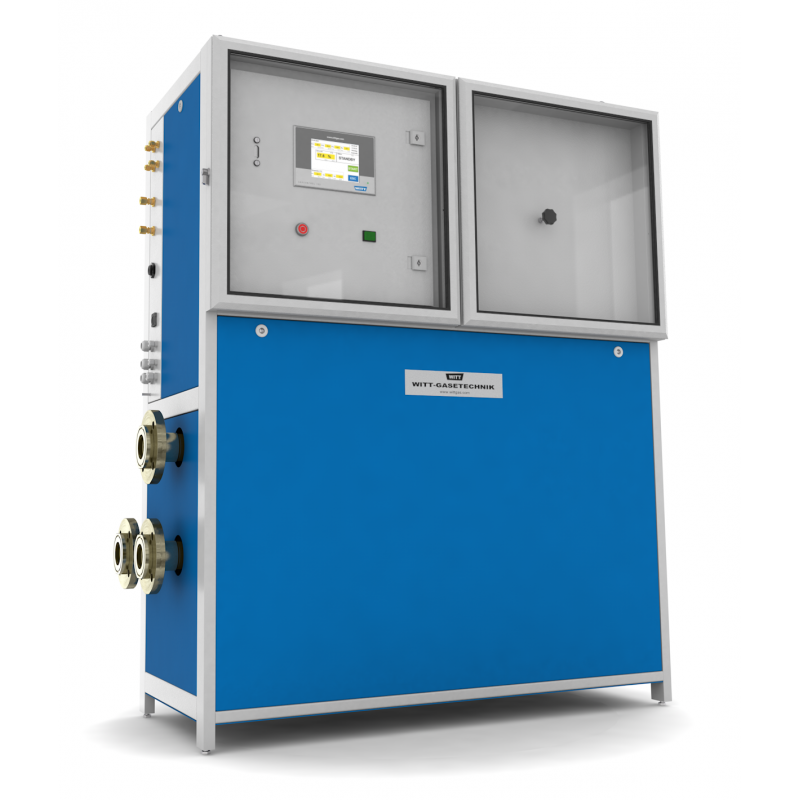

Gas mixer MG 500/1000-ME ERC

Easy operation:

• an electro-pneumatic proportional mixing valve provides infinitely variable mixture settings: (with control unit GC50 (local); via Ethernet or analogue input (remotely adjustable));
• user-friendly input of data and process parameter by integrated keyboard or via PC (for example MS-Excel®);
• simple, intuitive operation; no qualified personnel necessary;
• customer-oriented quality documentation by easy data management and evaluation;
• gas mixture withdrawal possible from zero to the maximum flow capacity.

High process reliability:

• inlet pressures and/or temperatures that are too low set off an audible/visual alarm and shut down the mixed gas supply;
• lockable transparent door for protection of settings;
• independent from pressure fluctuations in the gas supply;
• possible for intermittent gas mixture withdrawal.

Options:

• for flammable gases available as Ex-version with separate control cabinet;
• monitoring of the gas supply by means of pressure and/or temperature transmitter; inlet pressures and/or temperatures that are too low set off a visual alarm (audible optional) and switch a potential-free contact (e. g. to shut down machinery to avoid quality problems);
• integrated gas analysis for the monitoring/control and documentation of the gas mixture production with heater for mixer and control system;
• with separate filter in the inlet.

Gases:

All technical gases (excluding toxic and corrosive gases also mixtures of fuel gas with air, O₂ or N₂ O).
